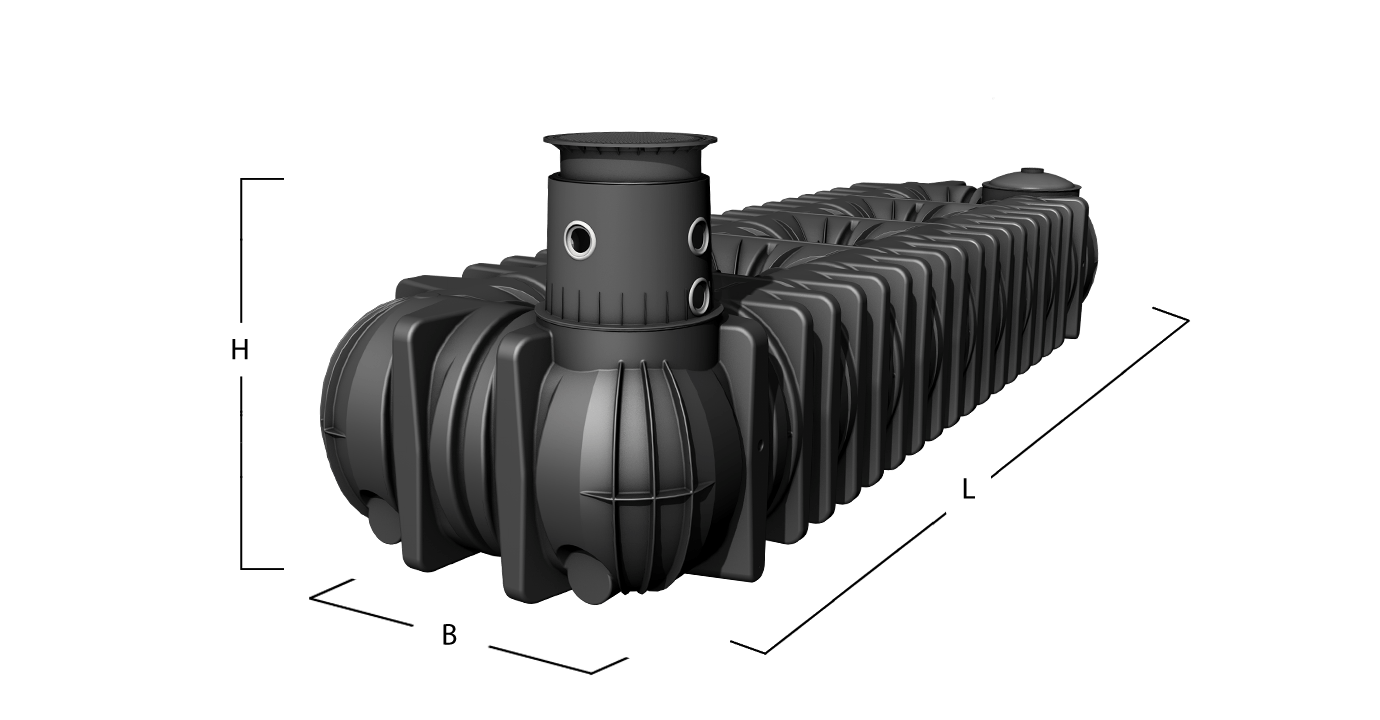

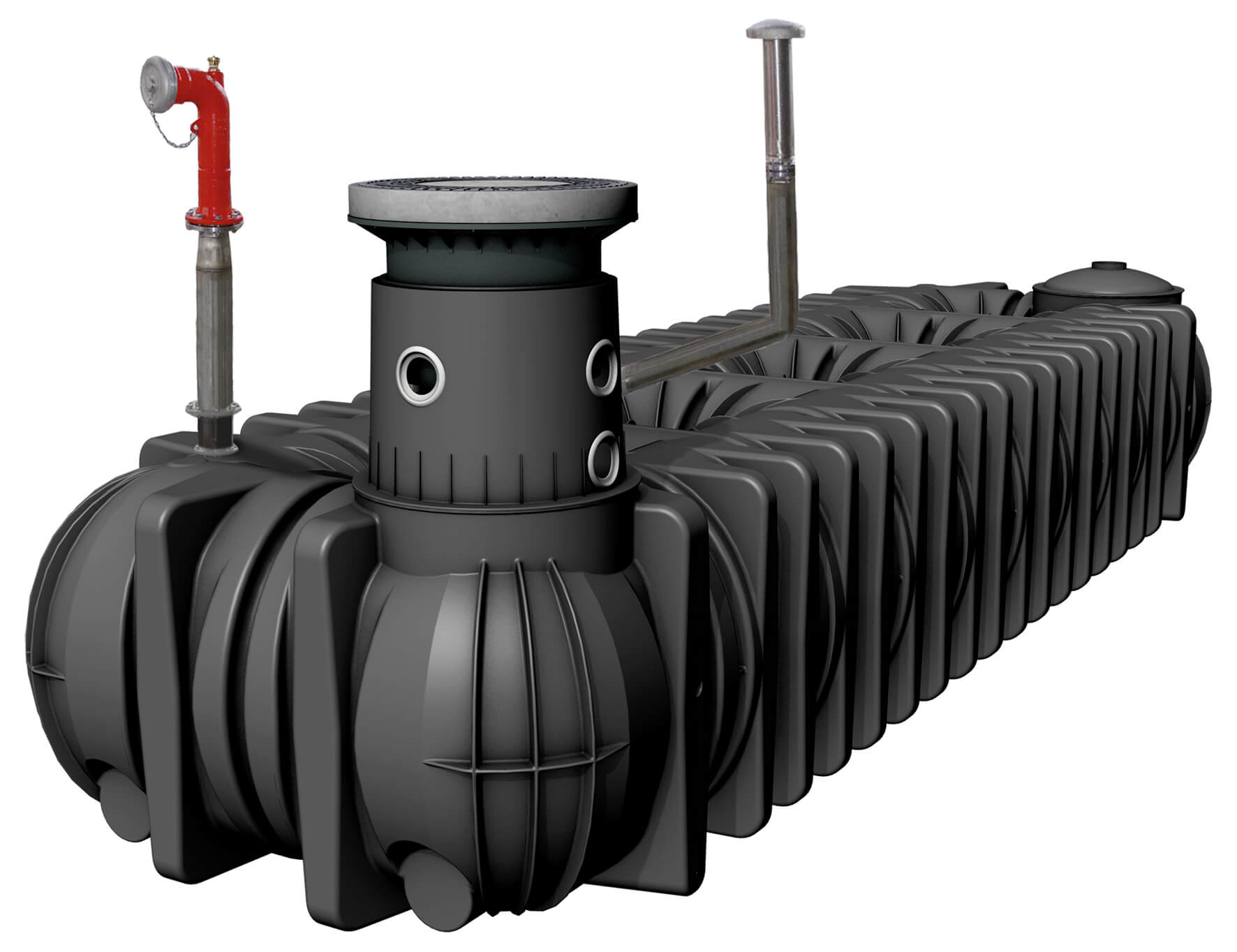

Platin XXL消防水箱容量从20,000升到65,000升不等，可承受卡车重量。
090737.jpg)
•交付件包括全套DIN 14230标准的消防水箱零部件
•整套系统，必要时全部在厂内装配完毕，并非在现场

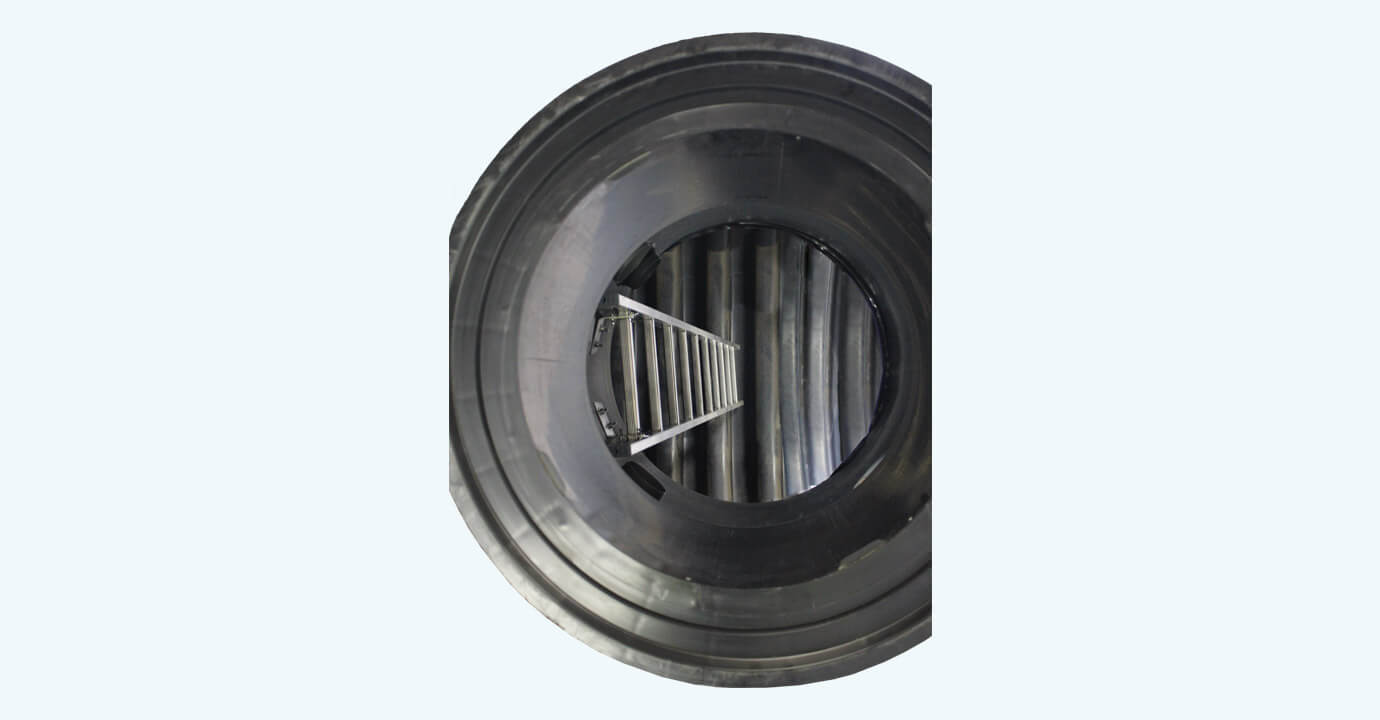

•延长井筒便于水箱检修/维护
•单个箱体可以扩大，亦可互联，扩大容量
•可使用饮用水，也可用雨水
•可承受最高30吨（66,138磅）重载车辆（井盖可承受卡车重量，附带负载分配板）
•可单独调节至与地面平齐（埋地深度 / 倾斜角）
•采购费用低
•带DIN 3223检查井筒，可承受卡车重量，由客户提供盖板
•延长井筒开口采用不锈钢框架，保证元件契合，精准安装
标准配件：
焊接塑料进水管DN 125（5英寸），带法兰；不锈钢疏水器与反涡流板，包括DN 125（5英寸）不锈钢进水伸缩管，带法兰；消防水进水接头，带杆配件和一个DIN 14244固定管接；DN 100（4英寸）不锈钢通风烟囱，带罩子和防虫网，用于垂直通风；安装“消防水提取点”不锈钢告示时使用的DIN 4066 (B2)固定器；检修梯，包括将其安装在延长井筒时使用的工具包；可承载重载卡车的DIN 3223检查井筒，现场带井盖
我们的优势
每一个细节都经过深思熟虑

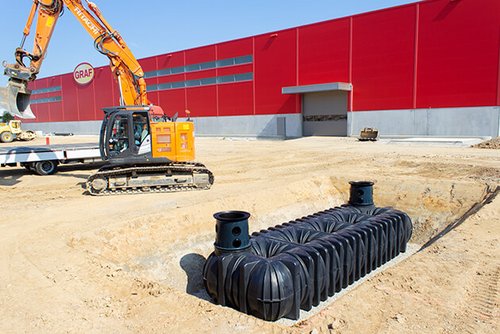

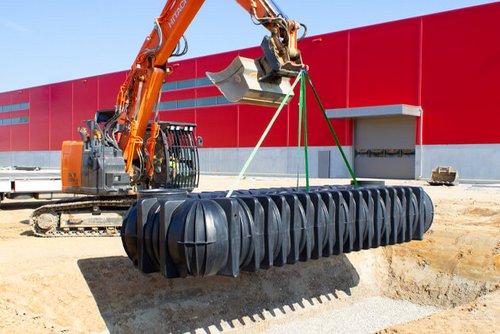

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.
Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.
Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.

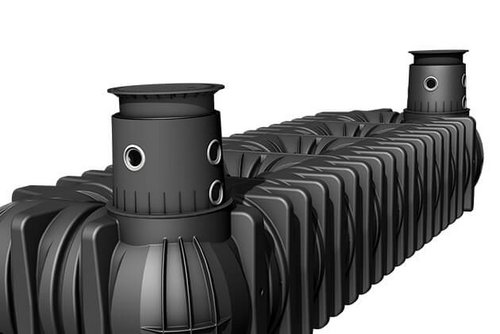

The GRAF XXL tank can optionally be equipped with a second tank dome.

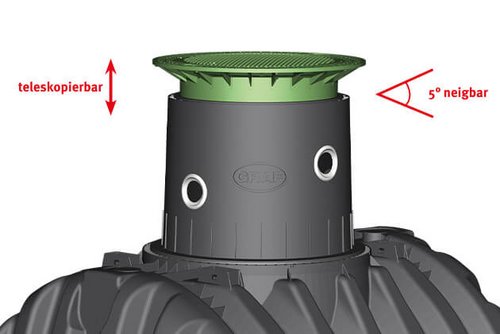

The GRAF telescopic dome shafts are continuously height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.

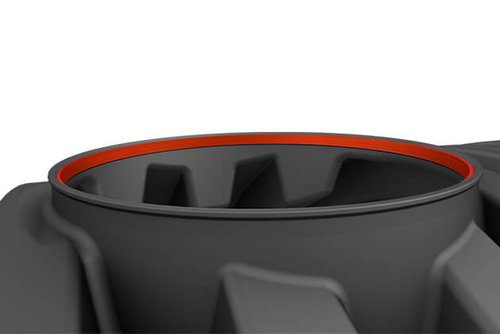

Dome opening with stainless steel profile for high fitting accuracy and mounting safety.

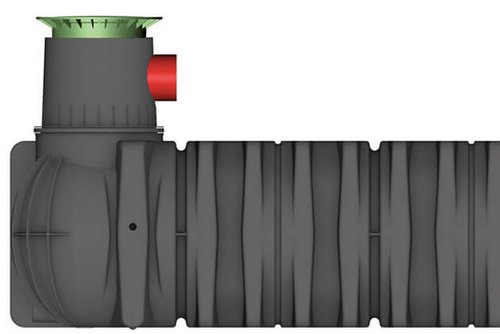

Flexible connections possible according to customer requirements on the tank dome up to DN 300 or on the end face up to DN 200.

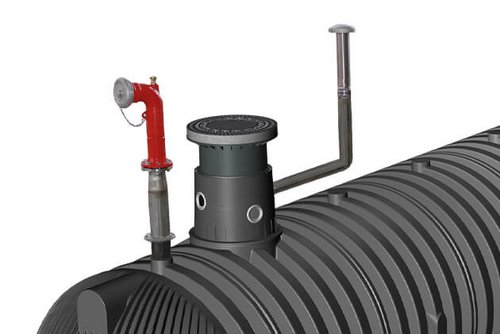

Pre-assembled complete system incl. all accessories based on DIN 14230. This saves time and costs during installation on site.

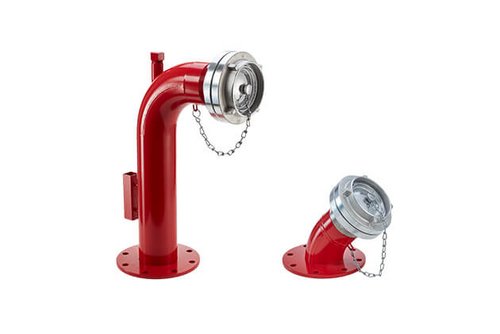

The suction connection can be optionally designed as an above-floor (form A) or underfloor connection (form C).
